Rolls are large parts, with the characteristics of high hardness, difficult processing and so on. For example, high speed steel rolls, high manganese and high chromium alloy rolls, tungsten carbide rolls and other roll materials. ZT launched ZBN300, ZBN300E and ZCD302 series turning insert grades according to the material, hardness and processing conditions of the rolls. The good wear resistance and cutting efficiency can effectively improve the processing efficiency and reduce the production cost for customers
PCD/CBN Inserts For Processing Rolls
In the metallurgical steel industry, the ZBN300/ZBN300E/ZCD302 grades inserts launched by ZT can meet the processing of high nickel and high chromium cast iron rolls, high speed steel rolls, tungsten carbide rolls and other roll materials, and have good users experience in Germany, the United States, China, India, Russia, Pakistan, Brazil, Ukraine, Turkey and other countries. ZT has rich inserts matching and field experience.The following are some cases of roll industry.

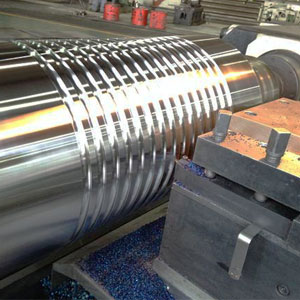

SOLID CBN INSERTS FOR HIGH CARBON SEMI-STEEL ROLL
Item: Solid CBN Inserts For High Carbon Steel Roll
Workpiece Name: High Carbon Semi-Steel Roll
Workpiece Hardness: HSD55-65
Processing Position: Roll Body, End Face
Machining Type: Rough Processing
Inserts Grade: ZBN300
Inserts Specification: RNMN201000
Cutting Type: Dry Cutting
Machining Parameter
| Inserts | Vc(m/min) | Ap | F |
| ZBN300 | 94 | 10 | 0.4 |

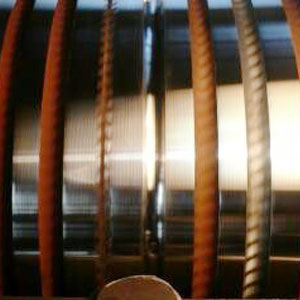

SOLID CBN INSERTS FOR HIGH SPEED STEEL ROLL
Item: RCMX090700 Solid PCBN Inserts For HSS Roll
Workpiece Name: High Speed Steel Roll
Workpiece Hardness: HSD80-85
Processing Position: Roll Body, Groove
Machining Type: Finishing Processing
Inserts Grade: ZBN300E
Inserts Specification: RCMX090700V
Cutting Type: Dry Cutting
Machining Parameter
| Inserts | Vc(m/min) | Ap | F |
| ZBN300 | 103 | 0.3 | 0.2 |

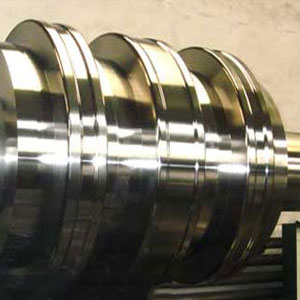

SOLID CBN INSERTS FOR HIGH MANGANESE CAST IRON ROLL
Item: ZBN300 RNMN201000 Solid CBN Inserts For High Manganese Cast Iron Roll
Workpiece Name: High Manganese,High Chromium Cast Iron Roll
Workpiece Hardness: HSD75-85
Processing Position: Shoulder, Roll Body
Machining Type: Rough Processing
Inserts Grade: ZBN300
Inserts Specification: RNMN201000
Cutting Type: Dry Cutting
Machining Parameter
| Inserts | Vc(m/min) | Ap | F |
| ZBN300 | 40 | 10 | 0.5 |
PCD INSERTS FOR TUNGSTEN CARBIDE ROLL
Item: ZT RCMX090700 PCD Inserts For Carbide Roll
Workpiece Name: Tungsten Carbide Roll
Workpiece Hardness: HRC80-85
Processing Position: Roll Groove
Machining Type: Rough Processing
Inserts Grade: ZCD302
Inserts Specification: RCMX090700V
Cutting Type: Wet Cutting
Machining Parameter
| Inserts | Vc(m/min) | Ap | F |
| ZCD302 | 25 | 0.6 | 1.02 |
PCD tools for Tungsten Carbide Roll
| PCD Boring Tool |  | PCD Carving Tool |  |
Cubic boron nitride cbn tool cutting roller process can be large margin cutting and intermittent cutting, and can process high hardness material roll, For more information, please contact Alice, email: sales@ztsuperhard.com, mobile: +86 17329325308
