1A8 Grinding Wheels

1A8 Grinding Wheels are used for high precision slot grinding, slicing and dicing, and some fine cut-off operations. The blade is available in Diamond or CBN and is used in single, as well as gang wheel applications, on standard surface grinders, creep feed grinders, OD grinders, machining centers, and specialized dicing machines.

1A8 Grinding Wheels
Outer diameter (D)Overall thickness (T)Arbor hole diameter(H)
2.541
341/1.5
44/61/1.5
54/6/81/2
64/6/81/2
762
84/6/103
106/8/10/123
124/6/123/6
148/10/12/146
158/10/12/146
168/10/12/14/1610
188/10/12/14/1610
208/10/12/14/1610
2312/14/16/18/2010
56400.12-0.25
58400.12-0.25

Note: other specifications can be customized upon request! Please contact us or e-mail: sale@ztsuperhard.com; Whatsapp/WeChat:+86 17329325308

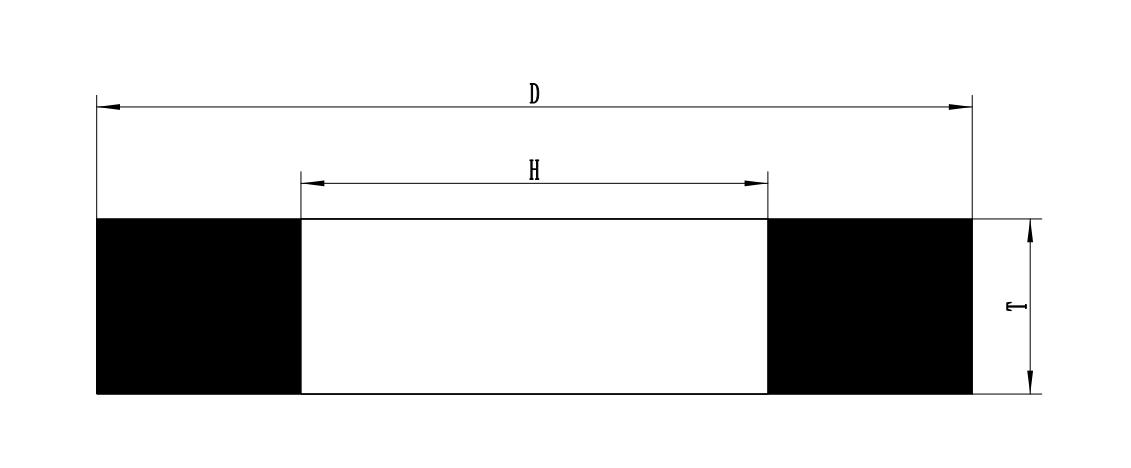

Wheel Shape
