ZTSUPERHARD has high precision PCD cutting tool blank production equipment, SEM raw material testing equipment, C-SCAN testing equipment, as well as mature PCD surface processing, polishing and cutting technology.
PCD cutting tool blanks are widely used for machining of non-ferrous metals and alloys, such as aluminum, copper, composite materials, as well as carbon fiber, glass fiber, graphite, stone, wood, cardboard, ceramics, plastics, rubber and other non-metallic materials, high wear resistance, good surface finish. The products are available in ZCD001, ZCD005, ZCD010, ZCD302.

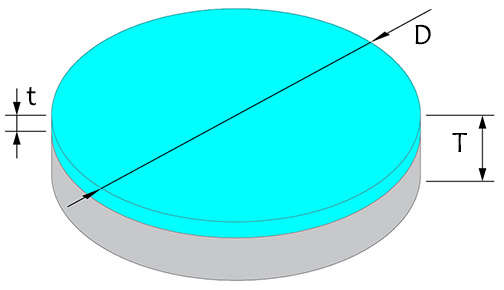

| Pic | Grade | grain size | D (mm) | t (mm) | T (mm) |
 | ZCD001 | 1μm | 55/62 | 0.5 | 1.6/2.0/3.2 |
| ZCD005 | 5μm | 55/62 | 0.5 | 1.6/2.0/3.2 | |
| ZCD010 | 10μm | 55/62 | 0.5 | 1.6/2.0/3.2 | |
| ZCD302 | 30+2μm | 55/62 | 0.5 | 1.6/2.0/3.2 |

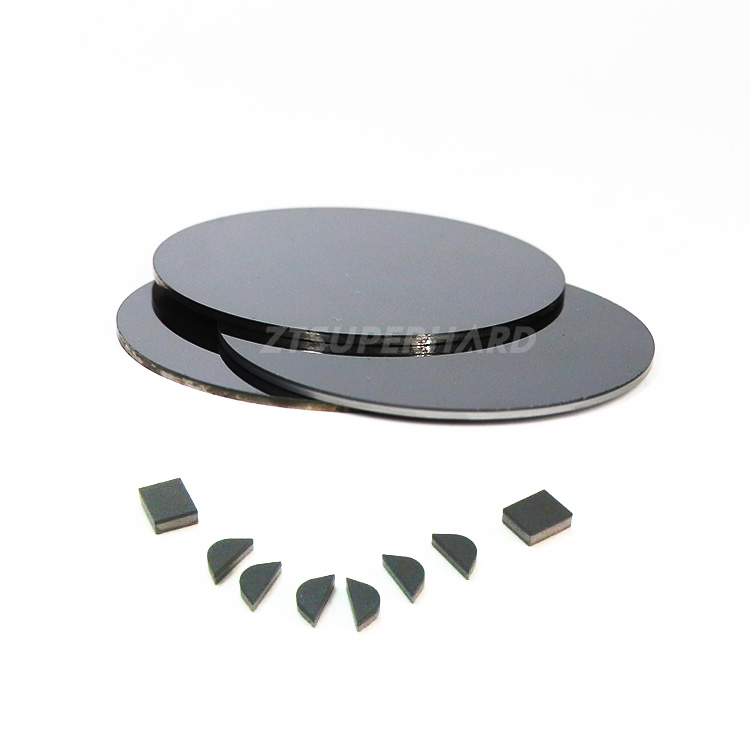

Both regular and irregular PCD tips in various shapes or profiles are available in accordance with customers’ drawings.
