SNGA PCBN inserts have high strength, wear resistance, impact toughness and other characteristics. SNGA PCBN turning tools using high performance PCBN material, in strict accordance with the international standard manufacturing, wide applicability.

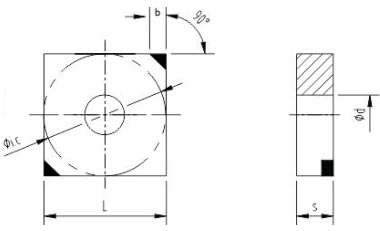

| TYPE | SIZE | |||||
| ISO | L | φi.c | s | φd | r | b |
| SNGA120402-2S | 12 | 12.7 | 4.76 | 5.16 | 0.2 | 2.5 |
| SNGA120404-2S | 12 | 12.7 | 4.76 | 5.16 | 0.4 | 2.5 |
| SNGA120408-2S | 12 | 12.7 | 4.76 | 5.16 | 0.8 | 2.3 |
| SNGA120412-2S | 12 | 12.7 | 4.76 | 5.16 | 1.2 | 2.3 |
| The standard edge of SNGA pcbn inserts is T01020, T02020, S01020, S02020 | ||||||
