Metal bond diamond cbn cutting wheels with steel core is compound of steel plate and superabrasive work layer. The steel plate has high strength and high rigidity. They are generally used for deep cutting and grooving.
Metal bond diamond cbn cutting wheels mainly used for cutting off and slotting glass, ceramics, magnetic materials, tool steel, bearing steel, heat resistance steel ect.
The main features of 1A1 wheel: The abrasive layer height is same with the core, mainly used for high precision slotting and cutting off.
The main features of 1A1R cutting wheel: The abrasive layer is thicker than the core thickness, which makes easier for chip removal and cooling. It is mainly used for deep slotting and cutting off.

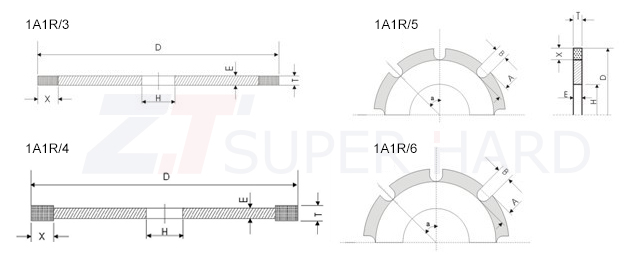

The specifications are mainly 1A1/3, 1A1R/4, 1A1/5,1A1R/6, 1A1/3 and 1A1R/4 are without water slot, while, 1A1/5 and 1A1 R/6 With water slot.
D | 30~100 | 100~127 | 130~150 | 160~200 | 230~300 | 300~400 |
T | ||||||
0.35 | √ | |||||
0.4 | √ | √ | ||||
0.5 | √ | √ | √ | |||
0.6 | √ | √ | √ | √ | ||
0.7 | √ | √ | √ | √ | ||
0.8 | √ | √ | √ | √ | ||
0.9 | √ | √ | √ | √ | ||
1.0 | √ | √ | √ | √ | √ | |
1.2 | √ | √ | √ | √ | √ | √ |
1.5 | √ | √ | √ | √ | √ | √ |
1.8 | √ | √ | √ | √ | √ | √ |
2.0 | √ | √ | √ | √ | √ | √ |
2.2 | √ | √ | √ | √ | √ | √ |
H | 12.7、19.05、20/22.225、30、30.75、32、40、50.8、60、75、90、127 |
Other specification can be made according to customers requirements. Email: sale@ztsuperhard.com
